- Pins & Bushings Turned?
- No
- Guiding Guard - Left
- Good
- Guiding Guard - Right
- Good
- Track Frame - Left
- Good
- Track Frame - Right
- Good
- Carrier Rollers Front
- Left: 148mm Measurement, Left: 12% Worn, Right: 148mm Measurement, Right: 12% Worn
- Carrier Rollers Rear
- Left: . Measurement, Right: . Measurement
- Idlers Front
- Left: 16mm Measurement, Left: 6% Worn, Right: 16mm Measurement, Right: 6% Worn
- Idlers Rear
- Left: . Measurement, Right: . Measurement

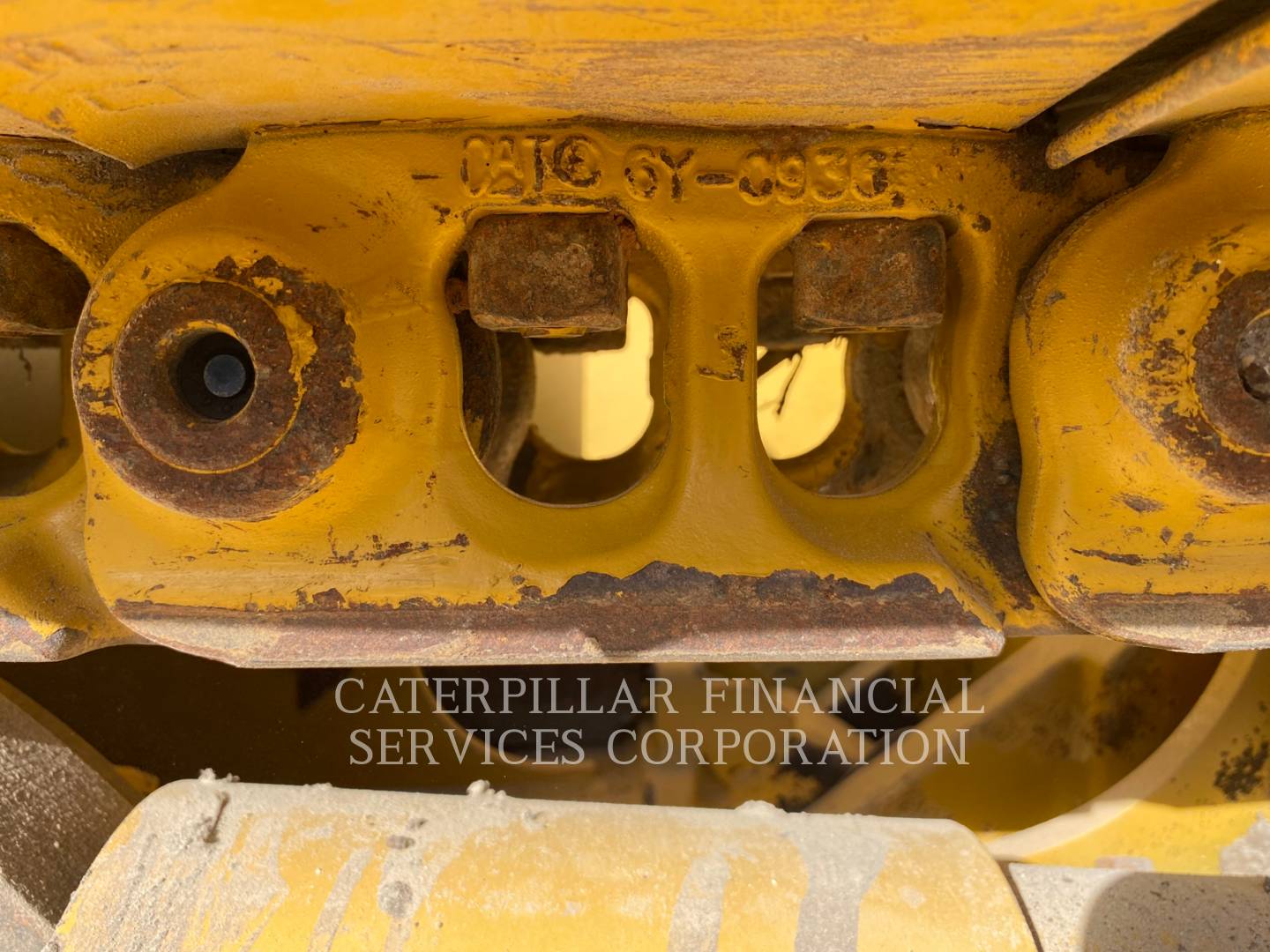

- Links
- Left: 25mm Measurement, Left: 6% Worn, Right: 25mm Measurement, Right: 6% Worn

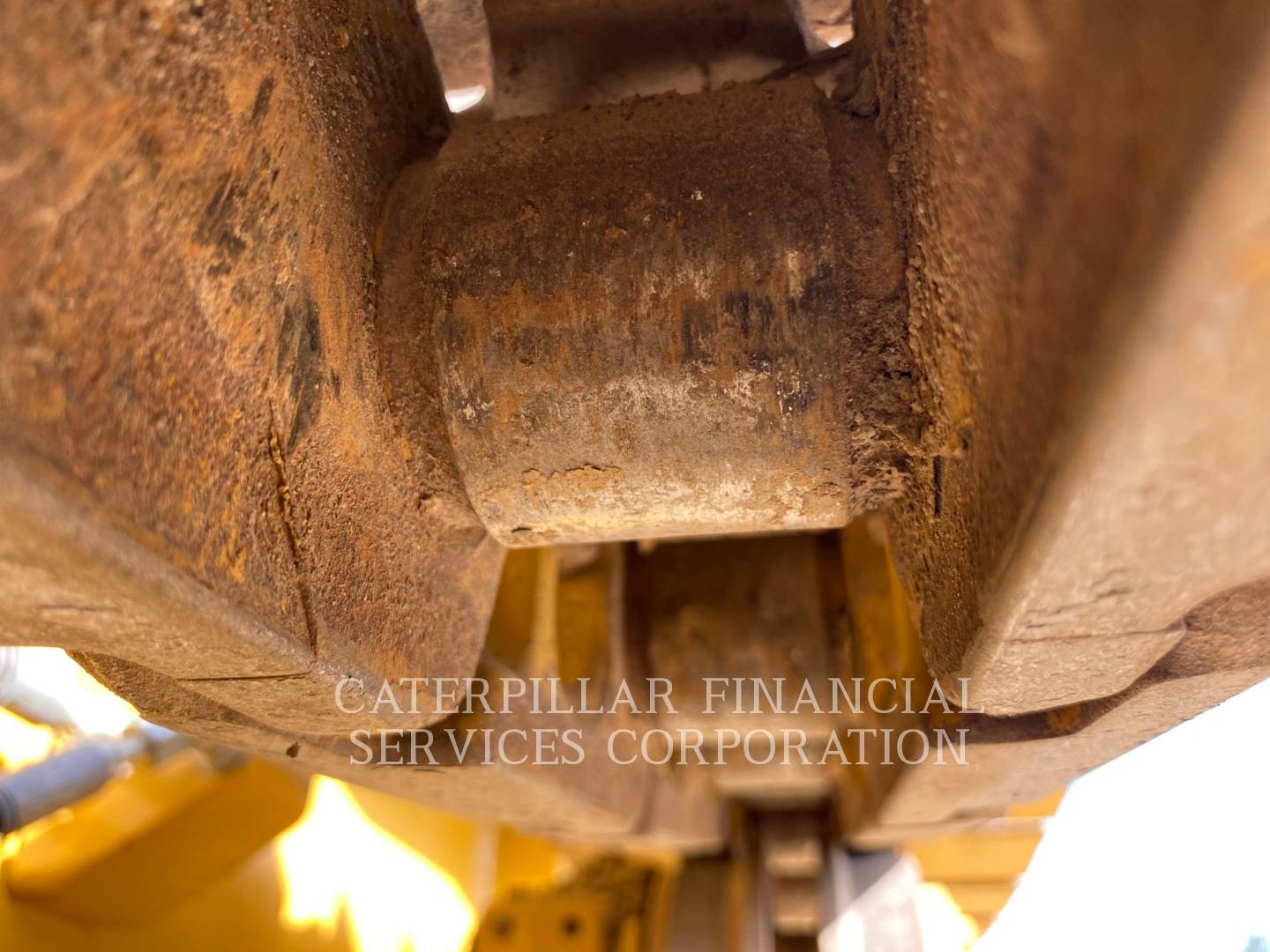

- Pins & Bushings (External)
- Left: 11.8mm Measurement, Left: 7% Worn, Right: 11.9mm Measurement, Right: 5% Worn
- Pins & Bushings (Internal)
- Left: . Measurement, Right: . Measurement
- Segments
- Left: . Measurement, Right: . Measurement
- Track Roller 1
- Left: 35.3mm Measurement, Left: 11% Worn, Right: 35.3mm Measurement, Right: 11% Worn
- Track Roller 10
- Left: . Measurement, Right: . Measurement
- Track Roller 2
- Left: 35.8mm Measurement, Left: 5% Worn, Right: 35.7mm Measurement, Right: 6% Worn
- Track Roller 3
- Left: . Measurement, Right: . Measurement
- Track Roller 4
- Left: 35.6mm Measurement, Left: 8% Worn, Right: 35.7mm Measurement, Right: 6% Worn
- Track Roller 5
- Left: 35.8mm Measurement, Left: 5% Worn, Right: 35.7mm Measurement, Right: 6% Worn
- Track Roller 6
- Left: . Measurement, Right: . Measurement
- Track Roller 7
- Left: . Measurement, Right: . Measurement
- Track Roller 8
- Left: . Measurement, Right: . Measurement
- Track Roller 9
- Left: . Measurement, Right: . Measurement

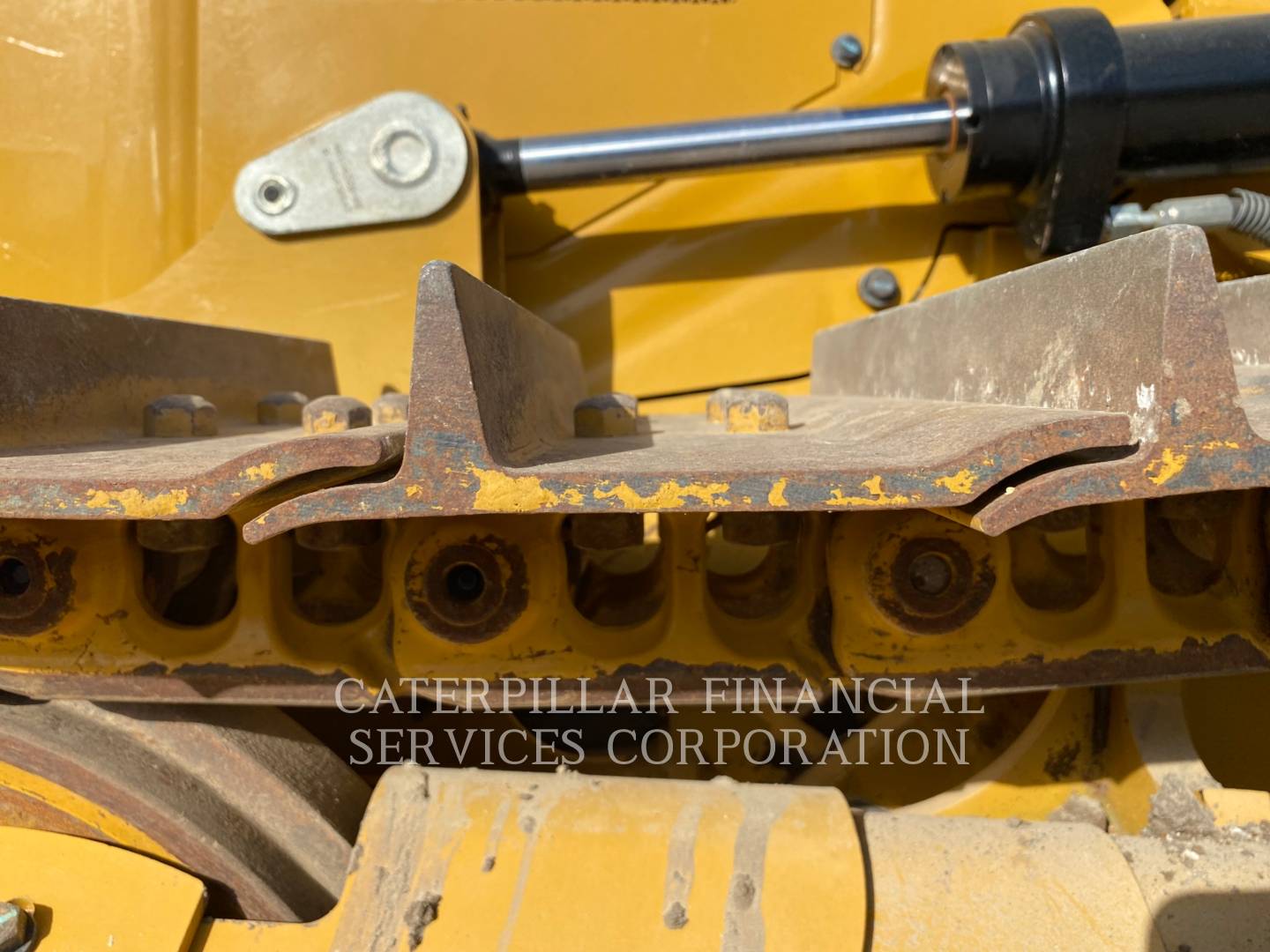

- Track Shoe Grouser Height
- Left: 54.5mm Measurement, Left: 5% Worn, Right: 54.8mm Measurement, Right: 4% Worn
