- Pins & Bushings Turned?
- No
- Guiding Guard - Left
- Good
- Guiding Guard - Right
- Good

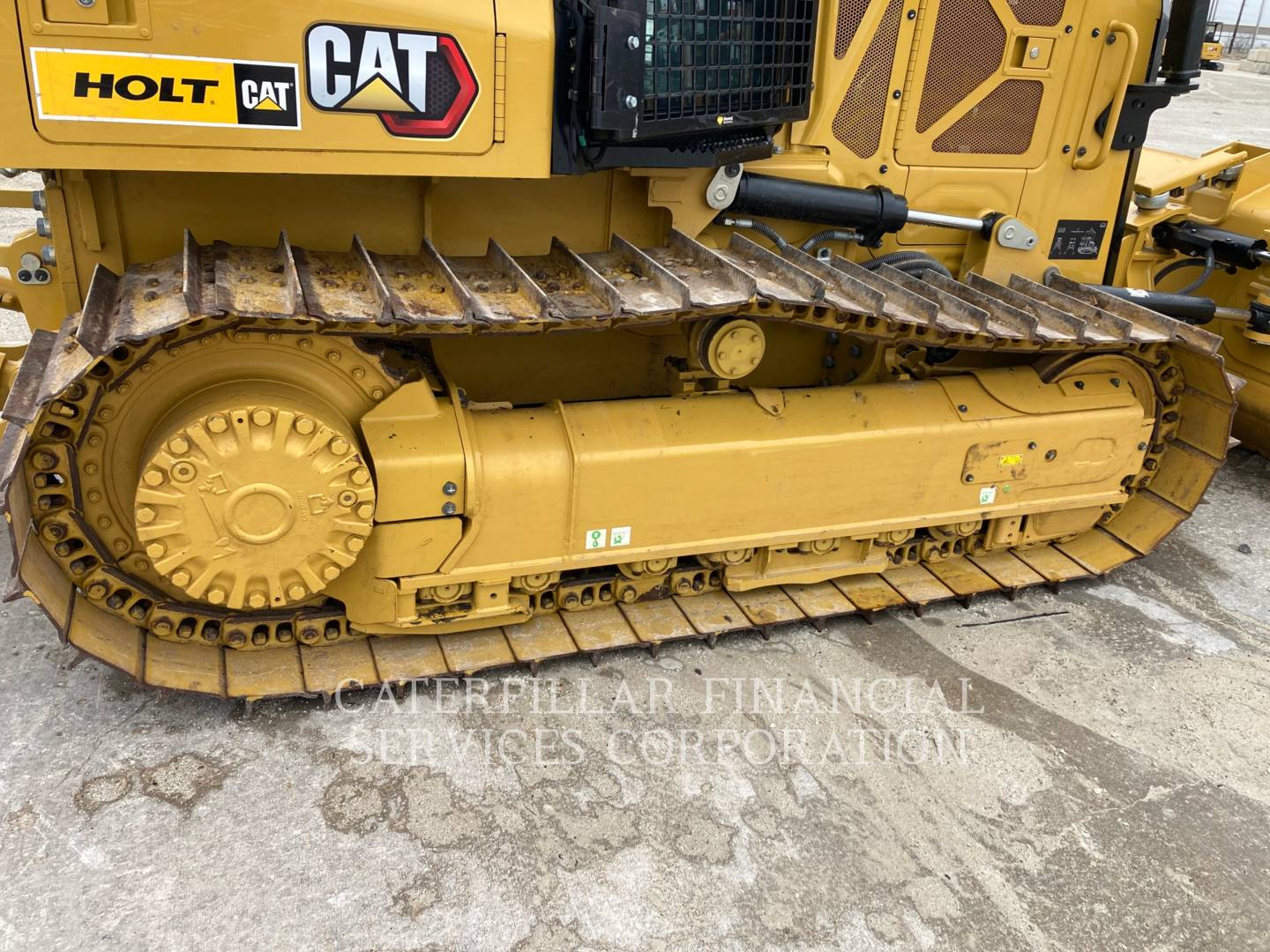

- Track Frame - Left
- Good
- Track Frame - Right
- Good
- Bushings (EXT)
- Left: 12.2 Measurement, Left: 0% Worn, Right: 12.2 Measurement, Right: 0% Worn
- Bushings (INT)
- Left: 623.6 Measurement, Left: 0% Worn, Right: 623.6 Measurement, Right: 0% Worn
- Carrier Rollers
- Left: 149.4 Measurement, Left: 0% Worn, Right: 149.4 Measurement, Right: 0% Worn
- Carrier Rollers Front
- Left: 5.88 Measurement, Left: 0% Worn, Right: 5.88 Measurement, Right: 0% Worn
- Carrier Rollers Rear
- Left: 0 Measurement, Right: 0 Measurement
- Idlers Front
- Left: 15.7 Measurement, Left: 0% Worn, Right: 15.7 Measurement, Right: 0% Worn
- Idlers Rear
- Left: 0.67 Measurement, Left: 0% Worn, Right: 0.67 Measurement, Right: 0% Worn
- Links
- Left: 25.4 Measurement, Left: 0% Worn, Right: 25.4 Measurement, Right: 0% Worn
- Pins & Bushings (External)
- Left: .48 Measurement, Left: 0% Worn, Right: .48 Measurement, Right: 0% Worn
- Pins & Bushings (Internal)
- Left: 24.55 Measurement, Left: 0% Worn, Right: 24.55 Measurement, Right: 0% Worn
- Segments
- Left: 0 Measurement, Right: 0 Measurement
- Shoe Width
- Left: 460.0 Measurement, Right: 460.0 Measurement
- Sprocket Segments
- Left: 177.8 Measurement, Right: 177.8 Measurement
- Track Roller 1
- Left: 36.1 Measurement, Left: 3% Worn, Right: 36.1 Measurement, Right: 3% Worn
- Track Roller 10
- Left: 0 Measurement, Right: 0 Measurement
- Track Roller 2
- Left: 35.8 Measurement, Left: 5% Worn, Right: 36.1 Measurement, Right: 3% Worn
- Track Roller 3
- Left: 0 Measurement, Right: 0 Measurement
- Track Roller 4
- Left: 36.1 Measurement, Left: 3% Worn, Right: 35.8 Measurement, Right: 5% Worn
- Track Roller 5
- Left: 36.1 Measurement, Left: 3% Worn, Right: 36.1 Measurement, Right: 3% Worn
- Track Roller 6
- Left: 35.8 Measurement, Left: 5% Worn, Right: 36.1 Measurement, Right: 3% Worn
- Track Roller 7
- Left: 0 Measurement, Right: 0 Measurement
- Track Roller 8
- Left: 0 Measurement, Right: 0 Measurement
- Track Roller 9
- Left: 0 Measurement, Right: 0 Measurement
- Track Shoe Grouser Height
- Left: 0 Measurement, Right: 0 Measurement
- Track Shoes
- Left: 55.9 Measurement, Left: 0% Worn, Right: 55.9 Measurement, Right: 0% Worn
