- Pins & Bushings Turned?
- No
- Guiding Guard - Left
- Good
- Guiding Guard - Right
- Good
- Track Frame - Left
- Good
- Track Frame - Right
- Good
- Bushings (EXT)
- Left: 60.5 Measurement, Left: 4% Worn, Right: 60.5 Measurement, Right: 4% Worn
- Bushings (INT)
- Left: 685 Measurement, Left: 0% Worn, Right: 685 Measurement, Right: 0% Worn
- Carrier Rollers
- Left: 158 Measurement, Left: 5% Worn, Right: 158 Measurement, Right: 5% Worn
- Carrier Rollers Front
- Left: 158mm Measurement, Left: 5% Worn, Right: 158mm Measurement, Right: 5% Worn
- Carrier Rollers Rear
- Left: N/A Measurement, Right: N/A Measurement
- Idlers Front
- Left: 17 Measurement, Left: 4% Worn, Right: 17 Measurement, Right: 4% Worn
- Idlers Rear
- Left: N/A Measurement, Right: N/A Measurement
- Links
- Left: 97.9 Measurement, Left: 0% Worn, Right: 97.5 Measurement, Right: 4% Worn
- Pins & Bushings (External)
- Left: 60.5 Measurement, Left: 3% Worn, Right: 60.5 Measurement, Right: 3% Worn
- Pins & Bushings (Internal)
- Left: 685 Measurement, Left: 0% Worn, Right: 685 Measurement, Right: 0% Worn
- Segments
- Left: Rock guard Measurement, Right: Rock guard Measurement
- Track Roller 1
- Left: 12 Measurement, Left: 0% Worn, Right: 13.5 Measurement, Right: 15% Worn
- Track Roller 10
- Left: N/A Measurement, Right: N/A Measurement
- Track Roller 2
- Left: 12 Measurement, Left: 0% Worn, Right: 12 Measurement, Right: 0% Worn
- Track Roller 3
- Left: Rock guard Measurement, Right: Rock guard Measurement
- Track Roller 4
- Left: 12 Measurement, Left: 0% Worn, Right: 12 Measurement, Right: 0% Worn
- Track Roller 5
- Left: 12 Measurement, Left: 0% Worn, Right: 12 Measurement, Right: 0% Worn
- Track Roller 6
- Left: 12 Measurement, Left: 0% Worn, Right: 12 Measurement, Right: 0% Worn
- Track Roller 7
- Left: Rock guard Measurement, Right: Rock guard Measurement
- Track Roller 8
- Left: N/A Measurement, Right: N/A Measurement
- Track Roller 9
- Left: N/A Measurement, Right: N/A Measurement

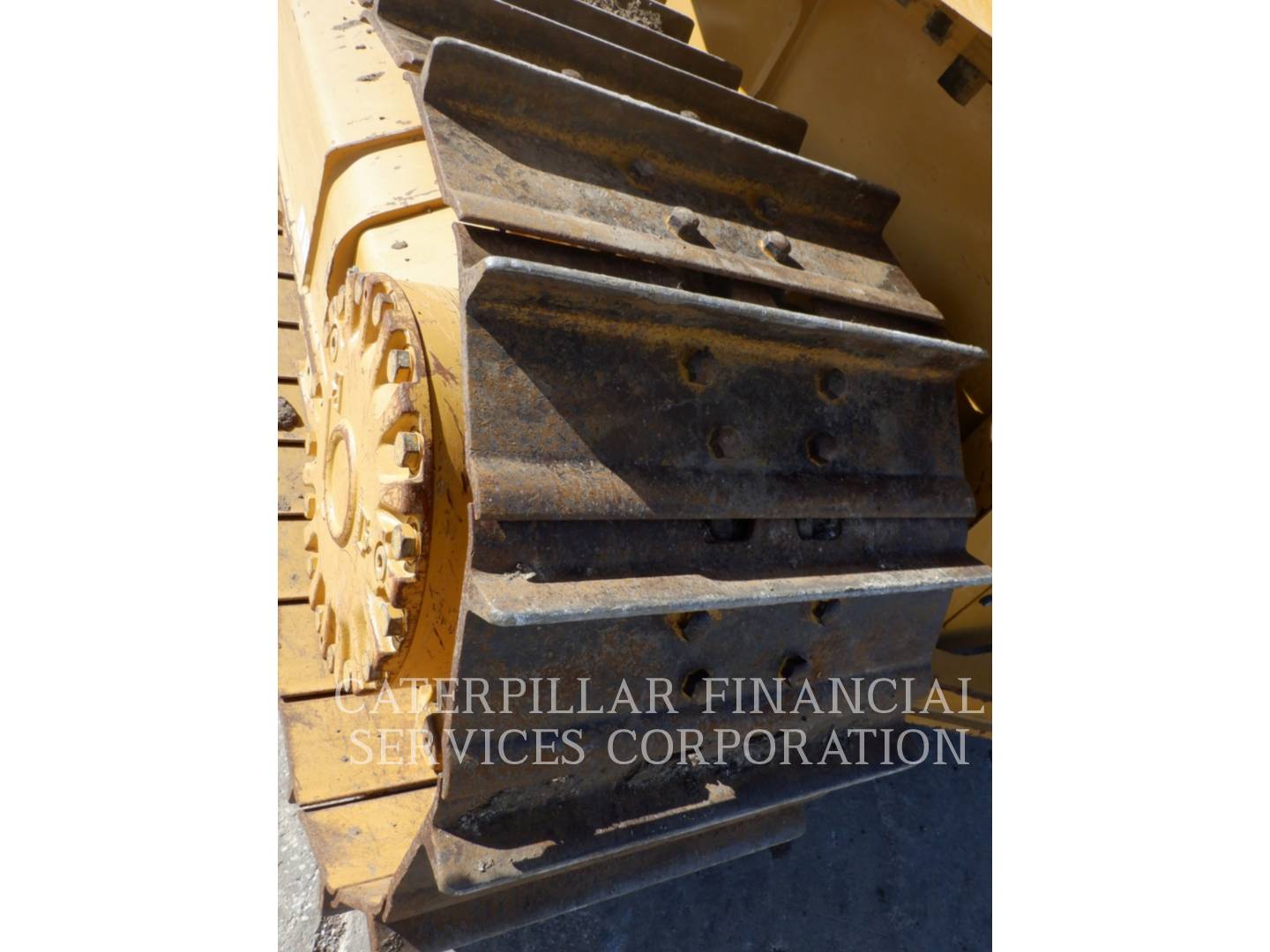

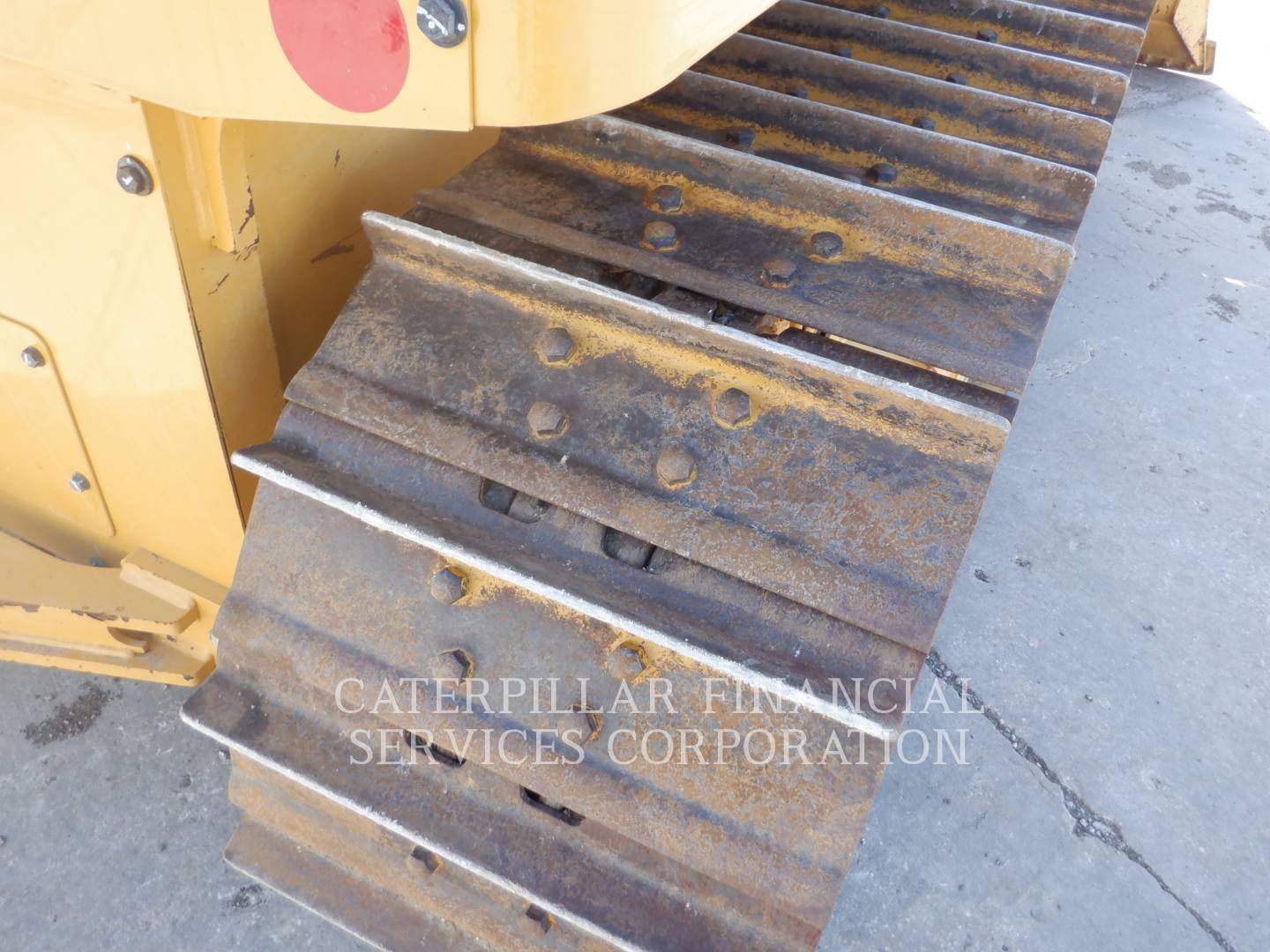

- Track Shoe Grouser Height
- Left: 45mm Measurement, Left: 8% Worn, Right: 47mm Measurement, Right: 0% Worn
